Substation Gateway - DR 3110

Product Overview

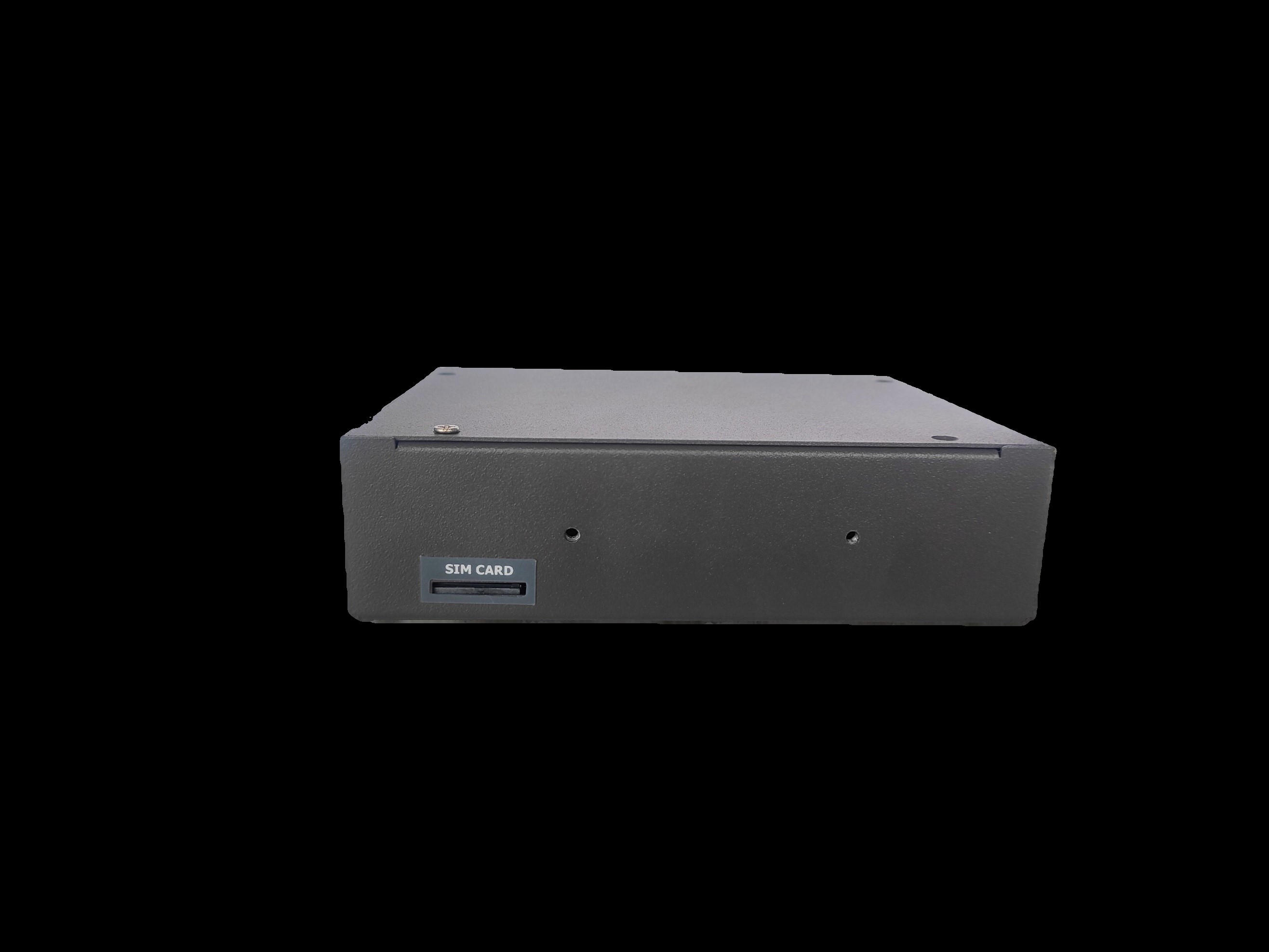

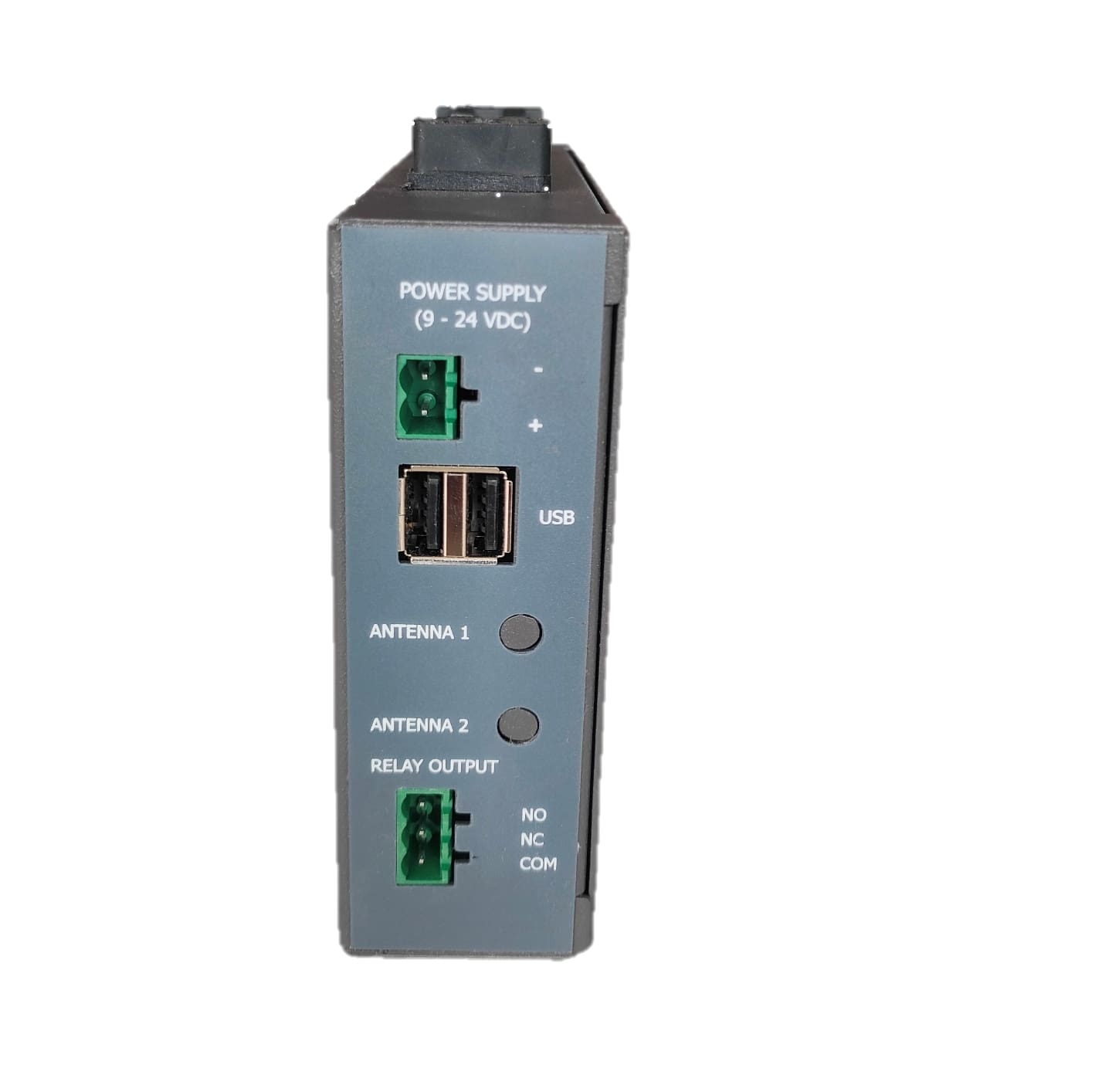

Substation Gateway (DR 3110)

Substation automation gateway integrates with various endpoints like energy meter, Feeder, protection relay, numerical relays, Dc meter, station transformer, PLC, and any other edge device where RS 232 or RS 485 data is available Modbus. Our gateway offers Unique data aggregation & formatting, Protocol con- version, and security. Our SS Gateway is designed with a small form factor and is suit- able for deployment in various environments. It also has wired and wireless connectivity options, which allo

Digitech Substation Gateways are entirely cus- tomizable from board-level architecture to ensure interoperability between embedded Linux systems for easy deployment. Our gate- ways are compatible with a massive ecosys- tem of solution providers.

View specification

Benefits

Benefits of our product

Features

NXP iMX 6ULL Cortex A8 600MHz CPU with DDR3L 256MB RAM

Support web service for remotely on-line monitoring

Firmware update by SD card and online update

Data logger / protocol coverter

Support singlel SIM slots for communication redundant

Support IEC 101, IEC 104, IEC 61850 (Optional)

Wide Operating temperature: -40 ~ 70°C

Applications

Digital Substation Application

Protocol converter

IIOT Applications

Easy hardware setup and configuration

Supports Auto Device Routing for easy configuration

Digital Substation Application

Protocol converter

IIOT Applications

Capabilities

Built-in Ethernet cascading for easy wiring

Embedded traffic monitoring/diagnostic information for easytroubleshooting

microSD card for configuration backup/duplication and event logs

Status monitoring and fault protection for easy maintenance

Support IEC 101, IEC 104 , IEC 61850 (Optional)

Wide Operating temperature: -40 ~70 C
